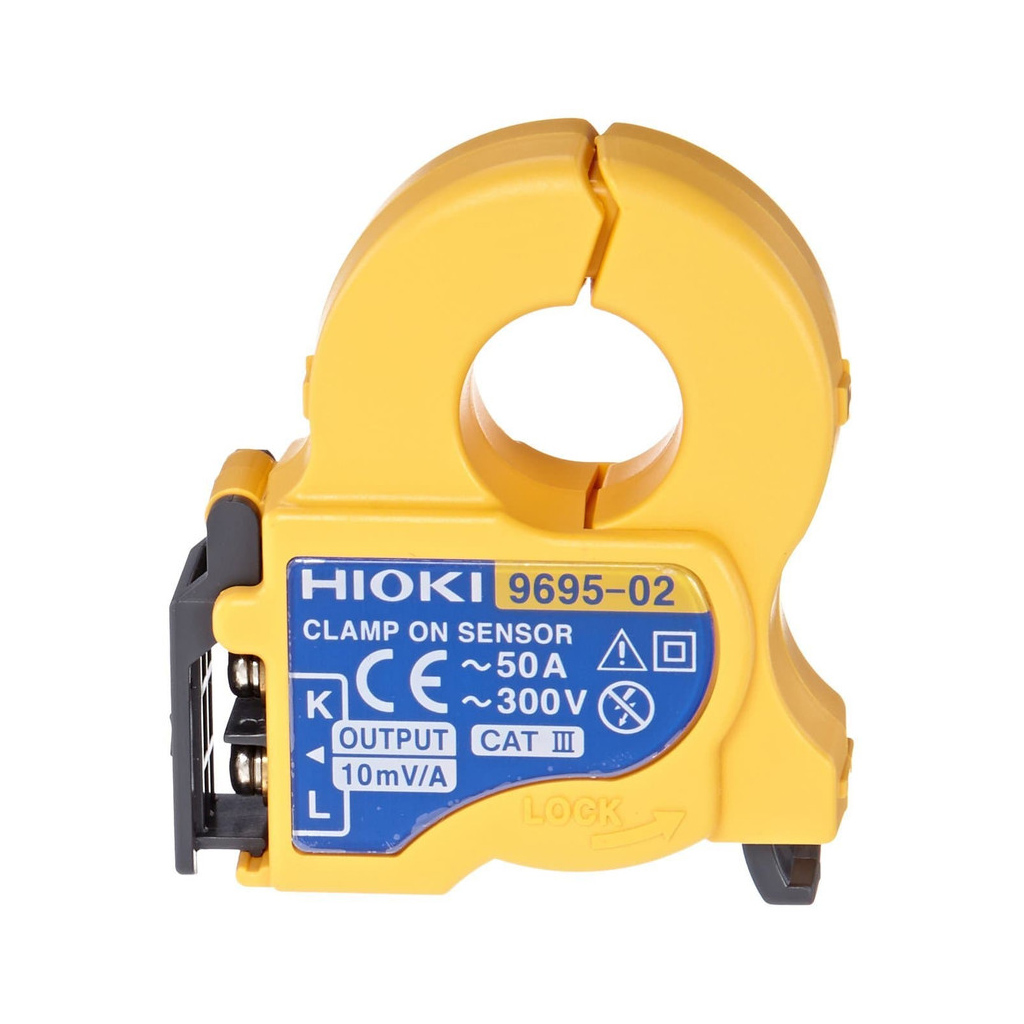

Clamp On Sensor Hioki 9695-02

Deskripsi Produk : Clamp On Sensor Hioki 9695-02

Clamp On Sensor Hioki 9695-02

Spesifikasi :
Clamp Sensor 50A
1mv/A Voltage output
For use with power meters, PQAs and Memory HiCorders
Rated primary current: 50 A AC
Output voltage: 10 mV AC/A
Amplitude accuracy: ±0.3% rdg.±0.02%f.s. (f.s.:50 A (9695-02),45Hz to 66Hz, at core center)
Phase accuracy: Within ±2° (45 Hz to 5 kHz)
Amplitude frequency characteristics: Within ±1% at 40 Hz to 5 kHz (deviation from accuracy)
Effect of conductor position: Within ±0.5% (deviation from center)
Effect of external electromagnetic field: 0.1 A equivalent or lower (in an AC electromagnetic field of 400 A/m)
Maximum permissible input: 60 A continuous (9695-02)(at 45 to 66 Hz, ambient temperature 50°C)
Temperature coefficient: 0.02%rdg./°C
Dielectric strength: 3536 V ACrms for 15 sec (between electric circuit and core)
Maximum rated voltage to earth: 300 V ACrms or lower (Insulated conductor)
Operating Temperature & Humidity: 0 to 50°C (32 to 122°F), 80%RH or lower (non-condensating)
Storage Temperature & Humidity: -10 to 60°C(14 to 140°F), 80%RH or lower (non-condensating)
Operating Environment: Indoors, up to 2000 m (6562-ft.) ASL
Standards applying: Safety EN61010-2-032:2002 Type B current sensor, Measurement Category III, Pollution Degree 2 (Anticipated Transient Overvoltage: 4000 V); EMC EN61326:1997+A1:1998+A2:2001+A3:2003
Measurable conductor diameter 15 mm (0.59”) or less
Output terminals: M3 terminal (Maximum outside diameter: 6.5 mm/0.26”, inside diameter: 3.2 mm/0.13”)
Cable length: 3 m or less
