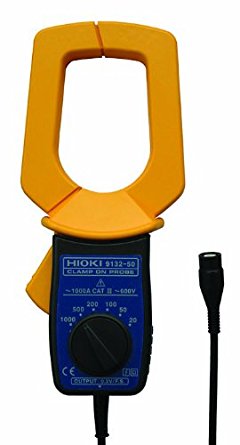

Clamp On Probe Hioki 9132-50
Rp 3.880.000,00
In stock
SKU
9132-50
Spesifikasi Produk Clamp On Probe Hioki 9132-50
SKU : 9132-50
Size : 100 x 224 x 35 mm
Clamp On Probe Hioki 9132-50
Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk Clamp On Probe Hioki 9132-50
Clamp On Probe Hioki 9132-50
Spesifikasi :
- Basic specifications (Accuracy guaranteed for 1 year)
- Rated current 20 A to 1000 A AC, 6 ranges
- Accuracy 3 % rdg. 0.2 % f.s. (45 to 66 Hz)
- Frequency characteristics Add to amplitude accuracy for frequencies from 40 to 1 kHz: 1 % rdg.
- Output rate 0.2 V AC f.s. (f.s. = setting rage)
- (Connect to a voltage input device providing a high input impedance of 1 M)
- Max. allowable input 1000 A rms continuous (all ranges)
- (For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)
- Max. rated voltage to earth 600 Vrms (50/60 Hz, CAT III)
- Core diameter 55 mm (2.17 in), or 20 mm (0.79 in) 80 mm (3.15 in) busbar
- Dimensions and mass 100 mm (3.94 in)W 224 mm (8.82 in)H 35 mm (1.38 in)D
Clamp On Probe Hioki 9132-50
