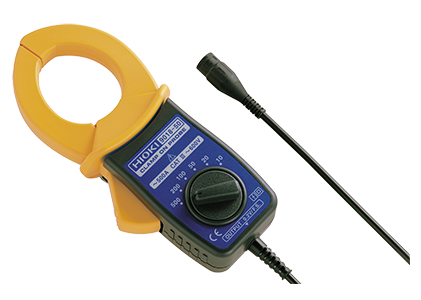

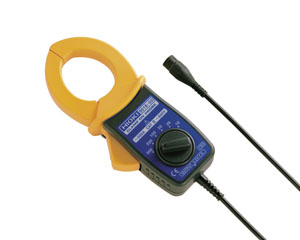

Clamp On Probe Hioki 9018-50

Rp 4.500.000,00
In stock
SKU
9018-50

Spesifikasi Produk Clamp On Probe Hioki 9018-50

SKU : 9018-50

Size : 78 x 188 x 35 mm

Clamp On Probe Hioki 9018-50

Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Deskripsi Produk Clamp On Probe Hioki 9018-50

Clamp On Probe Hioki 9018-50

Spesifikasi :

  • Rated current
  • 10 A to 500 A AC, 6 ranges
  • Accuracy
  • 1.5 % rdg. 0.1 % f.s. (45 to 66 Hz)
  • Frequency characteristics
  • Add to amplitude accuracy : 1 % rdg.
  • Add to phase accuracy : 2.5 for frequencies from 40 Hz to 3 kHz
  • Output rate
  • 0.2 V AC f.s. (f.s. = setting rage)
  • (Connect to a voltage input device providing a high input impedance of 1 M)
  • Max. allowable input
  • 150 A rms continuous (10/20/50 A ranges)
  • 400 A rms continuous (100/200 A ranges)
  • 650 A rms continuous (500 A range)
  • (For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)
  • Max. rated voltage to earth
  • 600 Vrms (50/60 Hz, CAT III)
  • Core diameter
  • 46 mm (1.81 in)
  • Dimensions and mass
  • 78 mm (3.07 in) W 188 mm (7.40 in) H 35 mm (1.38 in) D
Clamp On Probe Hioki 9018-50
