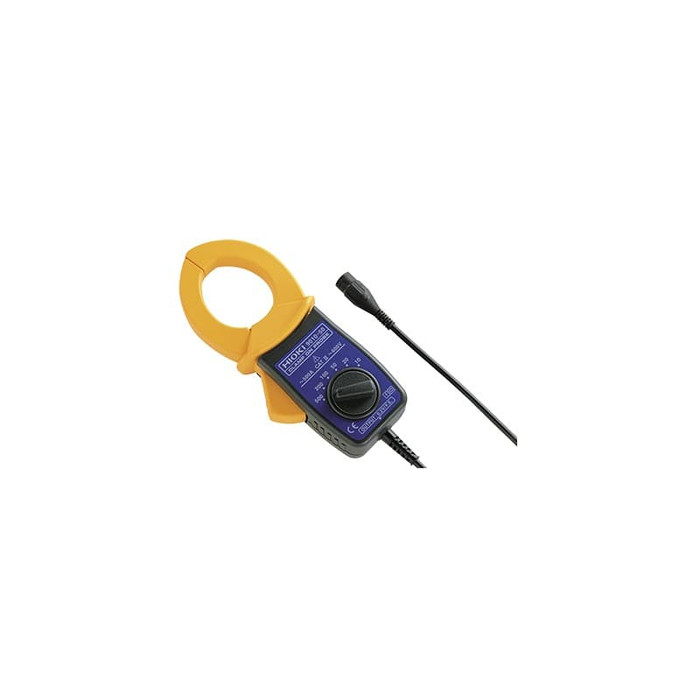

Clamp On Probe Hioki 9010-50
Rp 2.239.000,00
In stock
SKU
9010-50
Spesifikasi Produk Clamp On Probe Hioki 9010-50
SKU : 9010-50
Size : 78 x 188 x 35 mm
Clamp On Probe Hioki 9010-50
Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk Clamp On Probe Hioki 9010-50
Clamp On Probe Hioki 9010-50
Spesifikasi :
- Rated current
- 10 A to 500 A AC, 6 ranges
- Accuracy
- 2 % rdg. 1 % f.s. (45 to 66 Hz)
- Frequency characteristics
- Add to amplitude accuracy for frequencies from 40 to 1 kHz: 6 % rdg. (at 10 A and 20 A range)
- 3 % rdg. (for 50 A range and above)
- Output rate
- 0.2 V AC f.s. (f.s. = setting rage)
- (Connect to a voltage input device providing a high input impedance of 1 M)
- Max. allowable input
- 150 A rms continuous (10/20/50 A ranges)
- 400 A rms continuous (100/200 A ranges)
- 650 A rms continuous (500 A range)
- (For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)
- Max. rated voltage to earth
- 600 Vrms (50/60 Hz, CAT III)
- Core diameter
- 46 mm (1.81 in)
- Dimensions and mass
- 78 mm (3.07 in)W 188 mm (7.40 in)H 35 mm (1.38 in)D
Clamp On Probe Hioki 9010-50
