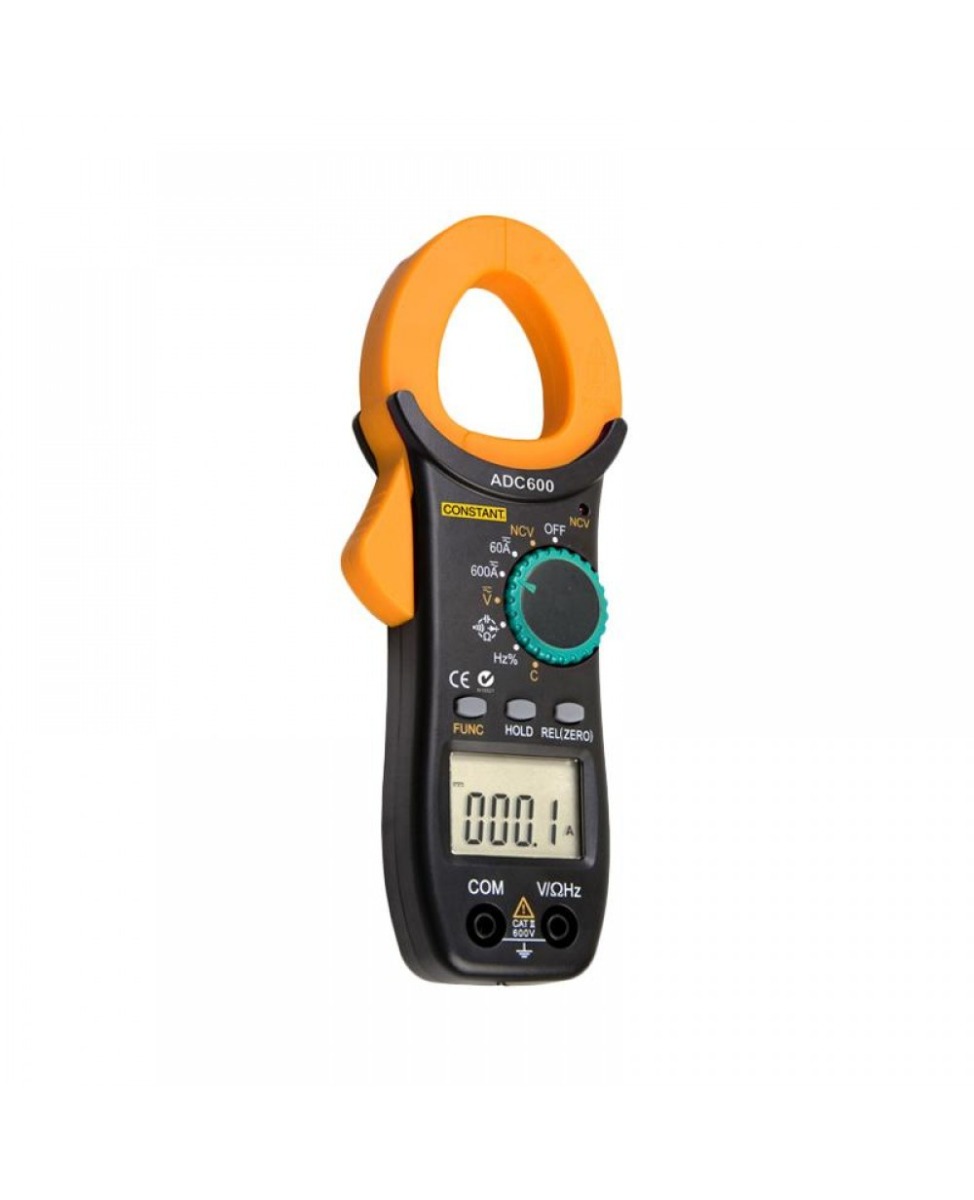

Clamp Meter Digital AC/DC 600A TRUE RMS Constant ADC600
Spesifikasi Produk Clamp Meter Digital AC/DC 600A TRUE RMS Constant ADC600 :
SKU : ADC600
Size : 210 x 75 x 20 mm
Clamp Meter Digital AC/DC 600A TRUE RMS Constant ADC600
Dapatkan produk Constant dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk Clamp Meter Digital AC/DC 600A TRUE RMS Constant ADC600 :
Clamp Meter Digital AC/DC 600A TRUE RMS Constant ADC600
Features :
DMM function
Low battery indication
Only figure ”1” for over range indication
Negative polarity indication
Spesifikasi :
AC Current 4/40A ±(2.5% rdg ± 15 dgts)
400/600A ±(2.5% rdg + 5 dgts)
DC Current 4/40A ±(3.0% rdg ± 5 dgts)
400/600A ±(2.5% rdg + 7 dgts)
AC Voltage 400mV ±(1.5% rdg ± 5 dgts)
4/40/400/600V ±(1.2% rdg + 3 dgts)
DC Voltage 400mV ±(1.2% rdg ± 5 dgts)
4/40/400/600V ±(1.0% rdg + 2 dgts)
Input Impedance 10MΩ (AC and DC Voltage)
Resistance 2kΩ ±(1.0% rdg + 2 dgts)
Diode Read approximately forward voltage drop of the diode.
Continuity If continuity exists ≤ 50Ω, built in buzzer will sound.
Display 3½ digits, 1999 counts
Battery 9V
Size / Weight H213 x W75 x D32mm / Approx. 240g
Clamp Meter Digital AC/DC 600A TRUE RMS Constant ADC600
