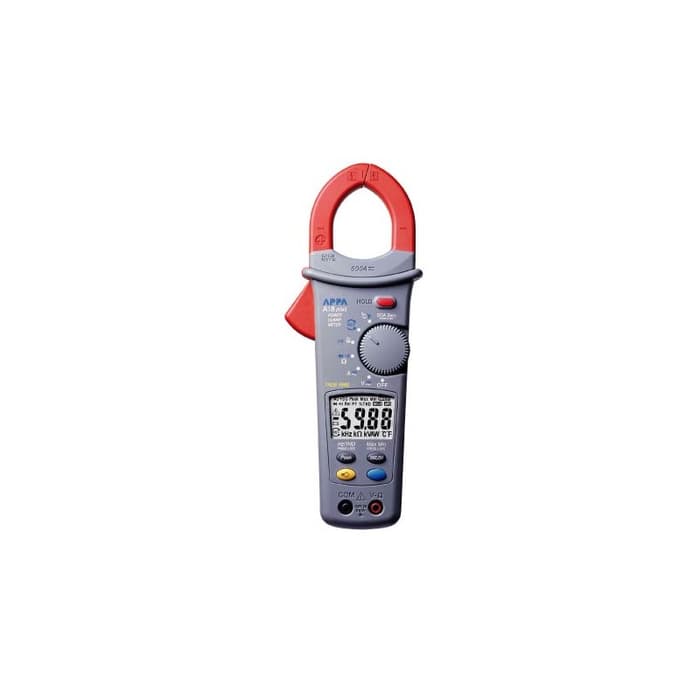

Clamp Meter APPA A18+

Tidak Ada Stock

Spesifikasi Produk Clamp Meter APPA A18+ :

SKU : APPA A18+

Clamp Meter APPA A18+

Dapatkan produk APPA dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 3.300.000,00

Spesifikasi Detail Clamp Meter APPA A18+ :

Voltage AC
  APPA A18plus
  Range:                                       4.000V~750V
  Basic Accuracy:                      +/-(1.5%+5d)
  APPA A11,A11R,A12,A12R
  Range:                                       400.0V,600V
  Basic Accuracy:                      +/-(1.0%+5d)
  APPA A15,A15R,A16,A16R,A16H,A16HR
  Range:                                       400.0V,750V
  Basic Accuracy:                      +/-(1.0%+5d)
  APPA A18plus
  Range:                                       60.00V,600.0V,750V
  Basic Accuracy:                      +/-(1.05%+5d)

  APPA A11, A11R, A12, A12R
  Overload Protection:              600V rms
  APPA A10plus, A15,A15R,A16,A16R,A16H,A16HR
  Overload Protection:              750V rms

  Frequency Response:            50Hz~500Hz

  APPA A10plus, A11,A12,A15,A16,A16H
  Conversion Type:                    Average sensing RMS indicating
  APPA A11R, A12R,A15R,A16R,A16HR
  Conversion Type:                    True RMS
  APPA A18plus
  Conversion Type:                    AC+DC True RMS
  Voltage DC
  APPA A10plus
  Range:                                       4V~1000V
  Basic Accuracy:                        +/-(0.9%+2d)
  APPA A11,A11R,A12,A12R
  Range:                                       400.0V,600V
  Basic Accuracy:                        +/-(0.7%+2d)
  APPA A15,A15R,A16,A16R,A16H,A16HR
  Range:                                      400.0V,600V
  Basic Accuracy:                        +/-(0.7%+2d)
  APPA A18plus
  Range:                                      60.00V,600.0V,1000V
  Basic Accuracy:                        +/-(1.0%+5d)

  APPA A11,A11R,A12,A12R
  Overload Protection:               600V rms
  APPA A10plus,A15,A15R,A16,A16R,A16H,A16HR,A18plus
  Overload Protection:               1000V rms

  Current AC
  APPA A10plus, A11,A11R,A12,A12R
  Range:                                        400.0A,600A
  Basic Accuracy:                       +/-(1.9%+5d)
                                                        +/-(1.9%+1A) (A10plus)
  APPA A18plus
  Range:                                        600.0A
  Basic Accuracy:                       +/-(1.9%+5d)
  APPA A15,A15R,A16,A16R,A16H,A16HR
  Range:                                        400.0A,1000A
  Basic Accuracy:                       +/-(1.9%+5d)

  APPA A10plus, A11,A12,A15,A16,A16H
  Conversion Type:                     Average sensing RMS indicating
  APPA A11R,A12R,A15,A16R,A16HR
  Conversion Type:                      True RMS
  APPA A18plus
  Conversion Type:                      AC+DC True RMS
  Current DC
  APPA A12,A12R
  Range:                                         400.0A,600A
  Basic Accuracy:                       +/-(1.5%+5d)
  APPA A16,A16R
  Range:                                         400.0A,1000A
  Basic Accuracy:                       +/-(1.9%+3d)
  APPA A16H,A16HR
  Range:                                         400.0A,1000A
  Basic Accuracy:                       +/-(1.0%+3d)
  APPA A18plus
  Range:                                         600.0A
  Basic Accuracy:                       +/-(1.5%+5d)
  Watt
  APPA A18plus
  Range:                                         4KW~450KW
  Basic Accuracy:                       +/-(2.5%+5d)

  Power Pactor
  APPA A18plus
  Range:                                         -1.00~1.00
  Basic Accuracy:                       +/-3 degree

  Total Harmonic Distortion
  APPA A18plus
  Range:                                         0.1%~1.00%
  Basic Accuracy:                       +/-(3.0%+10d)

  Resistance
  APPA A10plus
  Range:                                         400.0?~40M?
  Basic Accuracy:                       +/-(1.0%+2d)
  APPA A11,A11R,A12,A12R,A15,A15R,A16,A16R,A16H,A16HR
  Range:                                         400.0?
  Basic Accuracy:                       +/-(1.0%+3d)
  APPA A18plus
  Range:                                         600.0?,6K?,20K?
  Basic Accuracy:                       +/-(1.0%+5d)

  Overload Protection:                 600V rms
  Continuity Beeper
  APPA A10plus
  <100?, 2KHz tone buzzer
  APPA A11,A11R,A12,A12R,A15,A15R,
  A16,A16R,A16H,A16HR,A18plus
  <30?, 2KHz tone buzzer

  Diode Test
  APPA A10plus,A18plus
  Open Circuit Voltage:               3.3V max
  APPA A11,A11R,A12,A12R,A15,A15R,A16,A16R,A16H,A16HR
  Open Circuit Voltage:               3.0V max

  Capacitance
  APPA A10plus
  Range:                                          4nF~40mF
  Basic Accuracy:                        +/-(2.0%+8d)
  Overload Protection:                 600V rms


  Frequency Counter
  APPA A11,A11R,A12,A12R,A15,A15R,A16,A16R,A16H,A16HR
  Range:                                         4KHz, 10KHz
  Basic Accuracy:                       +/-(0.1%+2d)
  APPA A18plus
  Range:                                         20Hz~4KHz
  Basic Accuracy:                       +/-(0.1%+5d)

  APPA A11,A11R,A12,A12R,A18plus
  Overload Protection:                AC/DC 600A
  APPA A15,A15R,A16,A16R,A16H,A16HR
  Overload Protection:                AC/DC 1000A

  Temperature
  APPA A10plus
  Range:                                         -40?~400?/-40?~1000?
  Basic Accuracy:                       +/-(1.0%+3?)
  APPA A18plus
  Range:                                         -50?~1000?/-122?~1832?
  Basic Accuracy:                       +/-(1.0%+3?)

  Overload Protection:                 600V rms
