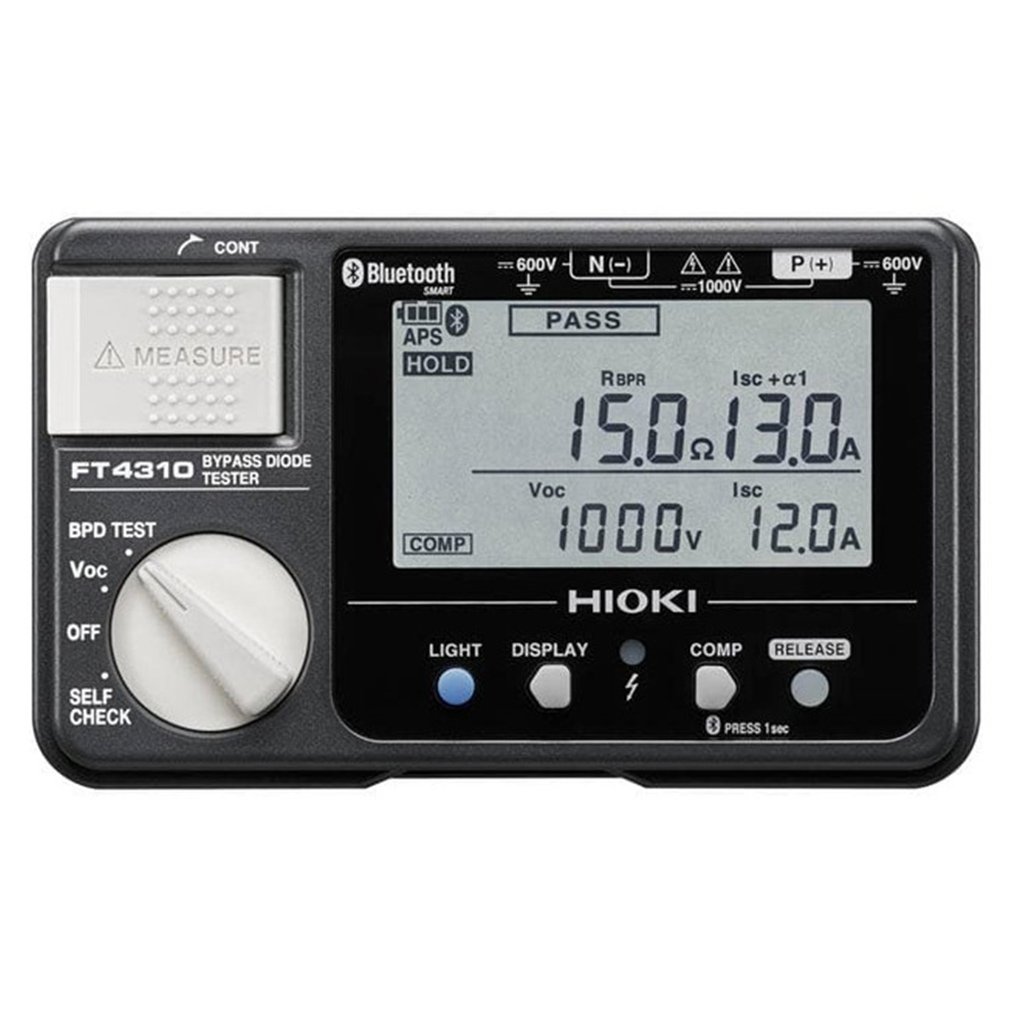

Bypass Diode Tester Hioki FT4310
Spesifikasi Produk : Bypass Diode Tester Hioki FT4310
SKU : FT4310
Size : 152W×92H×69D mm
Bypass Diode Tester Hioki FT4310
Dapatkan Produk Hioki dengan harga terbaik hanya di Alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk : Bypass Diode Tester Hioki FT4310
Bypass Diode Tester Hioki FT4310
Spesifikasi :
Traditionally, bypass diodes can only be inspected for good working condition at night or when power is not being generated by the solar panels in order to verify that any applied current is guided past the solar cells. With the FT4310 Bypass Diode Tester, you can detect for open faults even when the sun is out without covering the panels. Also test for short-circuit faults and cell string losses.
Fitur :
Test for open or short-circuit bypass diodes even during the day
Easily test using the strings in the junction boxes
Save time - simultaneously measure all electrical parameters
Automatically transfer data wirelessly (Available for Android and iOS devices*4)
Spesifikasi :
Dustproof and waterproof IP40 (EN60529)
Functions Displays the number of bypass diode measurements, Automatic polarity judgment
function, Comparison display, Auto hold, Live circuit indicator, Buzzer sounds,
Backlight, Comparator, Battery indicator, Auto power off, Bluetooth® Smart
Interface Bluetooth® 4.0LE, Supports devices: iOS, Android TM smartphone/ tablet
Power supply LR6 (AA) alkaline battery×6, Maximum rated power 18 VA
Continuous operating time: 45 hours (Comparator, backlight, Bluetooth® OFF)
Bypass Diode Tester Hioki FT4310
