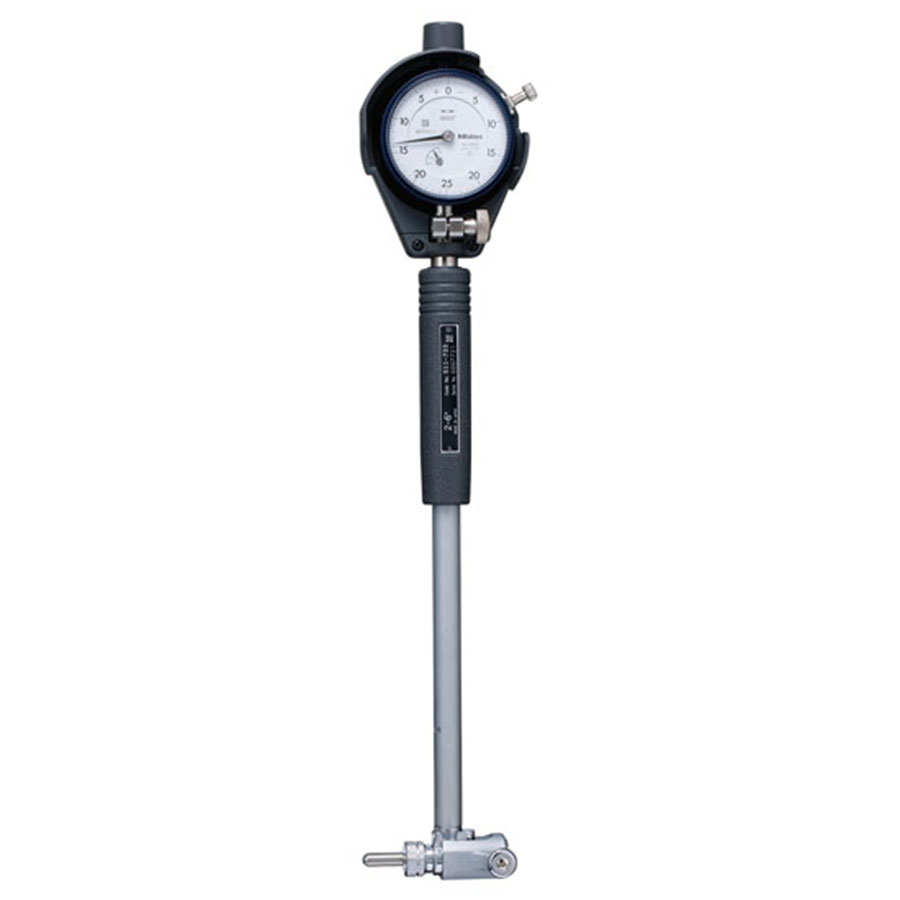

BORE GAGE 160-250/0.01MM 511-715 Mitutoyo MT0000244

Be the first to review this product

Rp 5.650.000,00

In stock

SKU

MT0000244

Spesifikasi Produk BORE GAGE 160-250/0.01MM 511-715 Mitutoyo MT0000244 -Include PPn-

SKU : MT0000244

Size : 450 x 54 x 285 mm

BORE GAGE 160-250/0.01MM 511-715 Mitutoyo MT0000244 -Include PPn-

Dapatkan Produk Mitutoyo dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Deskripsi Produk BORE GAGE 160-250/0.01MM 511-715 Mitutoyo MT0000244 -Include PPn-

BORE GAGE 160-250/0.01MM 511-715 Mitutoyo MT0000244 -Include PPn-

BORE GAGE 160-250/0.01MM 511-715 adalah alat yang digunakan untuk mengukur diameter suatu silinder. Alat ini mempunyai tangkai pemegang yang panjang dan sebuah dial gauge untuk membaca hasil ukur. Jarum pengukur akan bergerak ke kanan atau kekiri sesuai dengan nilai pengukuran yang didapat apakah kurang atau lebih dari ukuran standar benda kerja. Bore gauge ini mempunyai dimensi 450 X 54 X 285 M M dengan kapasitas pengukuran 160-250 MM. Bore gauge sering digunakan di industri, pabrik, atau bengkel.

Benefit :

Easy and Accurate measurement of inside diameters

Fitur :

Allows inside diameter measurement with high accuracy.
Longer effective stroke (compared with the conventional product).
Carbid e contact points ensure high durability and wear resistance.
Sponge-like structure on handle reduces heat transfer from the operator’s hand by 50%.
Interchangeable washers 0.5mm thick are supplied as standard accessories to enable setting in small steps.
Optional extension rods can be attached for measuring deep holes.
A Bore Gauge Checker and a range of Setting Rings are available to aid in accurately setting a gauge before making a measurement.

Spesifikasi :

No. 511-715
Range : 160-250 mm
Graduation : 0.01 mm Accuracy : +/- 16 Mikrometer
Probe depth : 250 mm
Repeatability : 0.5 Mikrometer
Adjacent error : 1 Mikrometer
Remarks Includes 511-705 (Bore Gauge) and 2046SB (Dial Indicator)

BORE GAGE 160-250/0.01MM 511-715 Mitutoyo MT0000244 -Include PPn-
