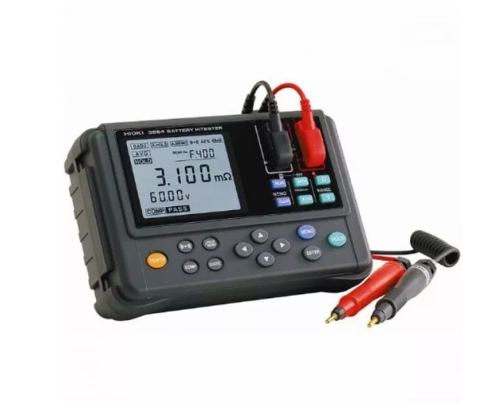

Battery Tester With Bluetooth Hioki BT3554-01

Deskripsi Produk : Battery Tester With Bluetooth Hioki BT3554-01

Battery Tester With Bluetooth Hioki BT3554-01

Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
Instantaneously diagnose degradation (PASS, CAUTION FAIL) by measuring internal resistance and voltage
Noise Reduction Technology improves noise resistance
Send or display measurement data in real-time via Bluetooth ® wireless technology

Spesifikasi :
Resistance measurement range 3 mΩ (Max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (Max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.)
Testing source frequency: 1 kHz ±30 Hz, With function for avoiding noise
frequency enabled: 1 kHz ±80 Hz, Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range), Open-circuit Voltage: 5 V peak
Voltage measurement range ± 6 V (Max. display ±6.000 V, resolution: 1 mV) to ± 60 V (Max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg. ±6 dgt.

BT3554-01 only: Built in Bluetooth® 4.0 LE (Bluetooth® SMART), supports tablets and smart phones with iOS8 or Android™4.3 or later
GENNECT Cross (Free ware): Display list of measured values, generate reports, or display the trend (on the PC only)
Other functions Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
Power supply LR6 (AA) Alkaline dry battery ×8, Continuous operating time: 8.5 hr
Dimensions and mass 192 mm (7.56 in)W × 121 mm (4.76 in)H × 55 mm (2.17 in)D,
BT3554: 790 g (27.9 oz) (including batteries), BT3554-01: 800 g (28.2 oz) (including batteries)
