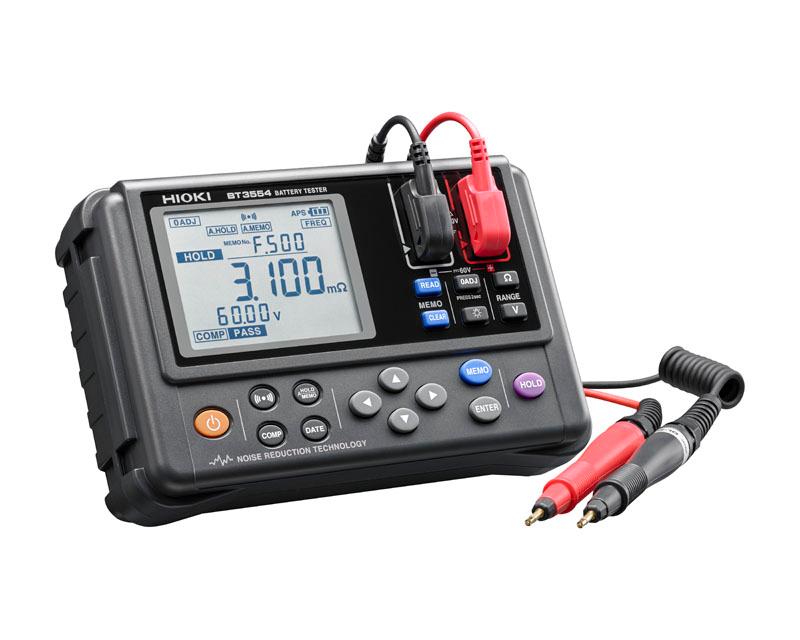

Battery Tester Hioki BT3554

Ada Stock

Spesifikasi Produk Battery Tester Hioki BT3554 :

SKU : BT3554

Size : 55 x 192 x 121 mm

Battery Tester Hioki BT3554

Dapatkan produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 31.204.000,00

Deskripsi Produk Battery Tester Hioki BT3554 :

Battery Tester Hioki BT3554

Fitur :

  • Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
  • Instantaneously diagnose degradation (PASS, CAUTION FAIL) by measuring internal resistance and voltage
  • Noise Reduction Technology improves noise resistance

Spesifikasi :

Resistance measurement range 3 mΩ (Max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (Max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.)
Testing source frequency: 1 kHz ±30 Hz, With function for avoiding noise
frequency enabled: 1 kHz ±80 Hz, Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range), Open-circuit Voltage: 5 V peak
Voltage measurement range ± 6 V (Max. display ±6.000 V, resolution: 1 mV) to ± 60 V (Max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg. ±6 dgt.
Absolute max. input voltage 60 V DC max. (No AC input)
Display update rate Approx. 3 times/s
Comparator functions Setting: Resistance warning limit and resistance failure limit, and voltage warning limit; Number of comparator setting: 200 sets
Comparator output: LCD display of PASS, WARNING, or FAIL. (Select beeper to sound on PASS/WARNING or FAIL)
Data storage Max. storable data: 6000 sets. (Saved items: Date, time, resistance value, voltage value, temperature, comparator setting values, and comparator judgement.)
Communication interface Via USB (forward the data to the PC, bundled software for the BT3554 only)
Other functions Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
Power supply LR6 (AA) Alkaline dry battery ×8, Continuous operating time: 8.5 hr
Dimensions and mass

192 mm (7.56 in)W × 121 mm (4.76 in)H × 55 mm (2.17 in)D,
BT3554: 790 g (27.9 oz) (including batteries), BT3554-01: 800 g (28.2 oz) (including batteries)
