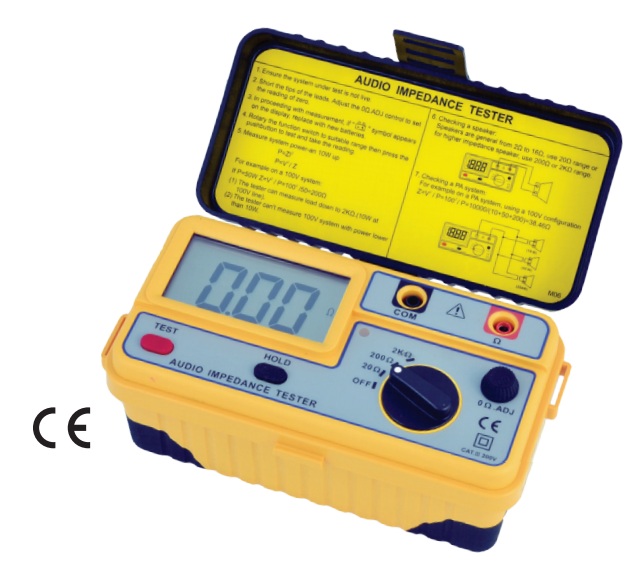

Audio Impedance Tester SEW 1106IM
Spesifikasi Produk Audio Impedance Tester SEW 1106IM
SKU : 1106IM
Audio Impedance Tester SEW 1106IM
Dapatkan Produk SEW dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk Audio Impedance Tester SEW 1106IM
Audio Impedance Tester SEW 1106IM
Fitur :
- Large LCD : 68 × 34mm (2.677" × 1.338").
- True measurement of speaker systems actural impedance at 1kHz.
- Three test ranges allow testing of home theater and commercial sound systems.
- Measures transformer impedances.
- Battery operation.
- Low battery indication.
- Data hold function.
- 0Ω adjustment.
Spesifikasi :
Measuring ranges 0-20Ω / 0-200Ω / 0-2kΩ 0-200Ω / 0-2kΩ / 0-20kΩ Test frequency 1kHz Accuracy 20Ω:±2%rdg±2dgt or ±0.1Ω, which is greater 200Ω/2kΩ : ±2%rdg±2dgt 200Ω/2kΩ : ±2%rdg±2dgt 20kΩ : ±3%rdg±2dgt Low battery indication “ “ Symbol appears on the display Data hold indication “ “ Symbol appears on the display Dimensions 175(L) × 85(W) × 75(D)mm Weight (battery included) Approx. 600g Power source 1.5V (AA) × 8 Safety standard EN 61010-1 CAT III 200V EN 61326-1 Accessories Instruction manual Test leads Soft pouch Batteries
Audio Impedance Tester SEW 1106IM
