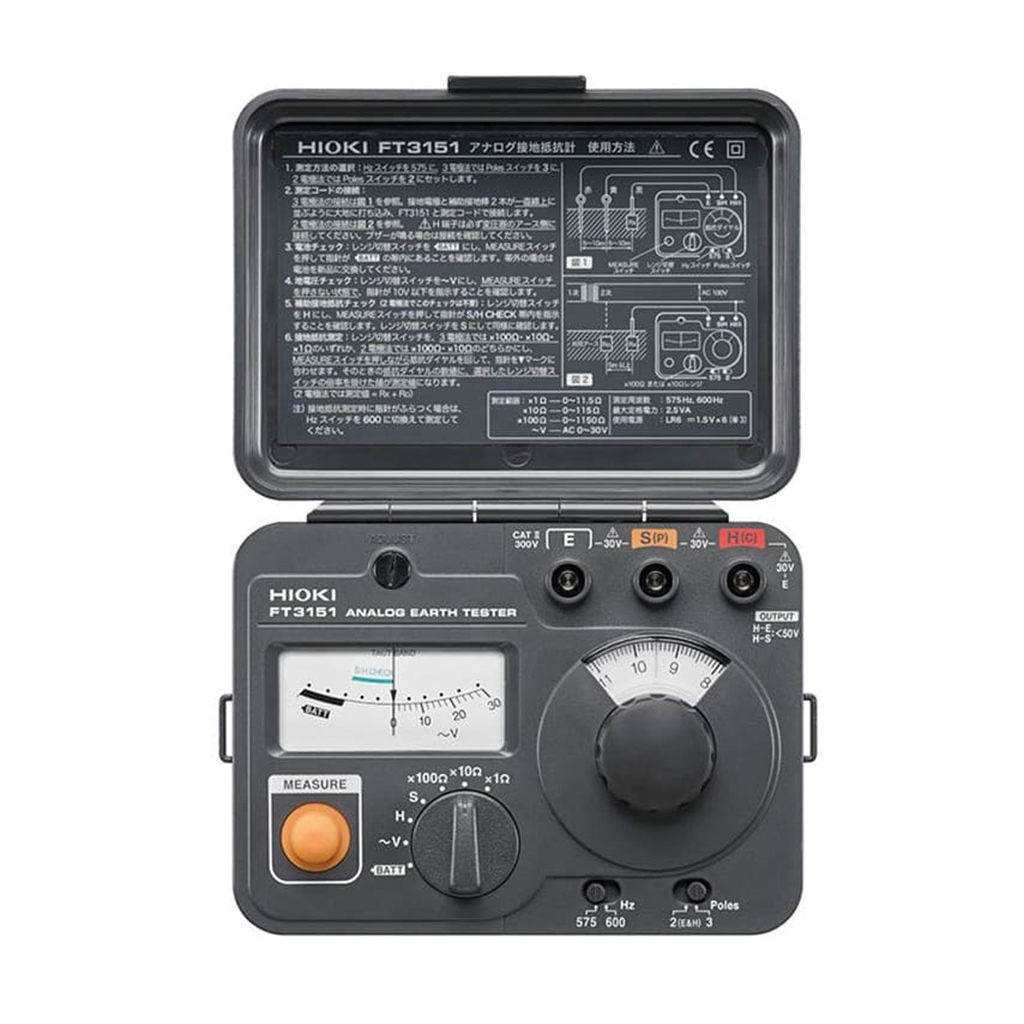

Analog Earth Tester Hioki FT3151

Ada Stock

Spesifikasi Produk Analog Earth Tester Hioki FT3151 :

SKU : FT3151

Size : 88 x 164 x 119 mm

Analog Earth Tester Hioki FT3151

Dapatkan produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 4.928.000,00

Deskripsi Produk Analog Earth Tester Hioki FT3151 :

Analog Earth Tester Hioki FT3151

Fitur :

  • Three-electrode method, Two-electrode method (Simple Measurement)
  • Wide measurement range for 0 to 1150 Ω, based on EN standard
  • Switchable measurement frequency to reduce the effects of power supply harmonics
  • Dramatically faster setup: Comes with improved grounding rods and cord winders.
  • Three-electrode method, Two-electrode method (Simple Measurement)
  • Wide measurement range for 0 to 1150 Ω, based on EN standard
  • Switchable measurement frequency to reduce the effects of power supply harmonics
  • Dramatically faster setup: Comes with improved grounding rods and cord winders.
  • A ground resistance meter that meets EN standards
  • Its safety and reliability know no borders. Use it anywhere with confidence.
  • Wide measurement range
  • Take measurements to 115% of the measurement range.
  • More stable measurement
  • Easily check the grounding condition of auxiliary grounding rods for better accuracy. Further, the measurement frequency switching lets you avoid influences such as that of high frequency grounding current.
  • Simple measurement feature
  • Switch between "normal" and "simple" measurement modes with the press of a button.
  • Overvoltage protection and alarm feature
  • If wires are incorrectly connected (as often happens during simple measurement of commercial power supplies), safety is provided by an alarm buzzer and overvoltage protection.
  • Resistant to dirt
  • Parts such as the measurement switches and measurement dial have increased dust resistance and durability.
  • More convenient accessories
  • A cable winder ensures freedom from cable tangles, and a convenient carrying case accommodates all measurement materials.

Spesifikasi :

General Specifications
Measurement system AC potentiometer method, Three-electrode method/ two-electrode method (switchable)
Measuring frequency: 575 Hz/ 600 Hz
Measurement current: Three-electrode method: 15 mA rms or less; Two-electrode method: 3 mA rms or less
Open circuit voltage: 50 V AC rms or less
Measurement range 10 Ω (0 to 11.5 Ω) 100 Ω (0 to 115 Ω) 1000 Ω (0 to 1150 Ω)
Nominal Deviation ±0.25 Ω ±2.5 Ω ±25 Ω
Functions Auxiliary earth resistance check S (P)/ H(C)
Earth potential measurement 0 to 30 V, Nominal Deviation: ±3.0 % f.s.
Power supply LR6 (AA) Alkaline battery ×6, 1100 times operation (at 30 sec. measurement/ 30 sec. rest cycle)
Dimensions and mass 164 mm (6.46 in)W × 119 mm (4.69 in)H × 88 mm (3.46 in)D, 760 g (26.8 oz)
Accessories Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measuring cable L9841 (alligator clip, black 4 m (13.12 ft)), Measurement Cable L9842-11 (yellow 10 m (32.81 ft), equipped with winder), Measurement Cable L9842-22 (red 20 m (65.62 ft), equipped with winder) ×1, LR6 (AA) Alkaline battery ×6, Carrying Case C0106 ×1, Instruction manual ×1

Analog Earth Tester Hioki FT3151
