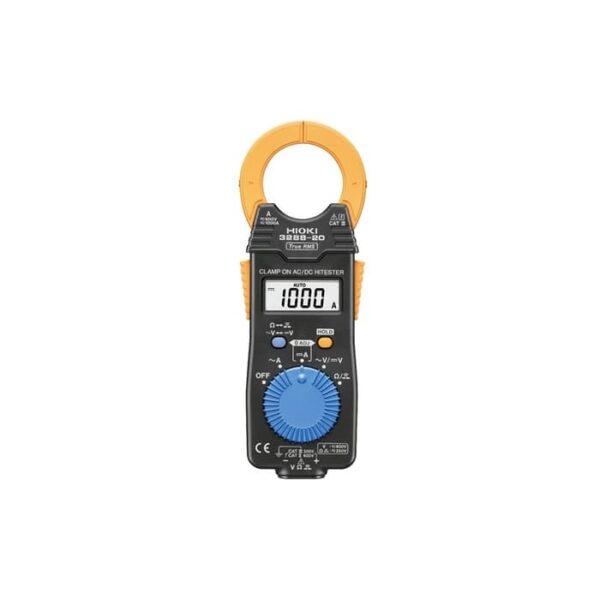

AC/DC Clamp On Hi Tester Hioki 3288-20

Deskripsi Produk AC/DC Clamp On Hi Tester Hioki 3288-20

AC/DC Clamp On Hi Tester Hioki 3288-20

Spesifikasi :

• AC/DC Clamp On Hi Tester HIOKI 3288-20
• DC current 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
• AC current 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
• Basic accuracy: ±1.5 % rdg. ±5 dgt. 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
• Basic accuracy: ±1.5 % rdg. ±5 dgt.
• DC voltage 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
• AC voltage 4.199 V to 600 V, 4 ranges,
• Basic accuracy: ±2.3 % rdg. ±8 dgt.
• (30 to 500 Hz, Average rectified) 4.199 V to 600 V, 4 ranges,
• Basic accuracy: ±2.3 % rdg. ±8 dgt.
• (30 to 500 Hz, True RMS)
• Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
• Crest factor N/A 3 or less (2 at 1000 A range, 1.5 at Voltage)
• Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
• Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
• Power supply Coin type lithium battery (CR2032) ×1, Continuous use 60 hours Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
• Core jaw dia. φ 35 mm (1.38 in)
• Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D
• Accessories Instruction manual ×1, Test Lead L9208 ×1, Carrying Case 9398 ×1

AC/DC Clamp On Hi Tester Hioki 3288-20
