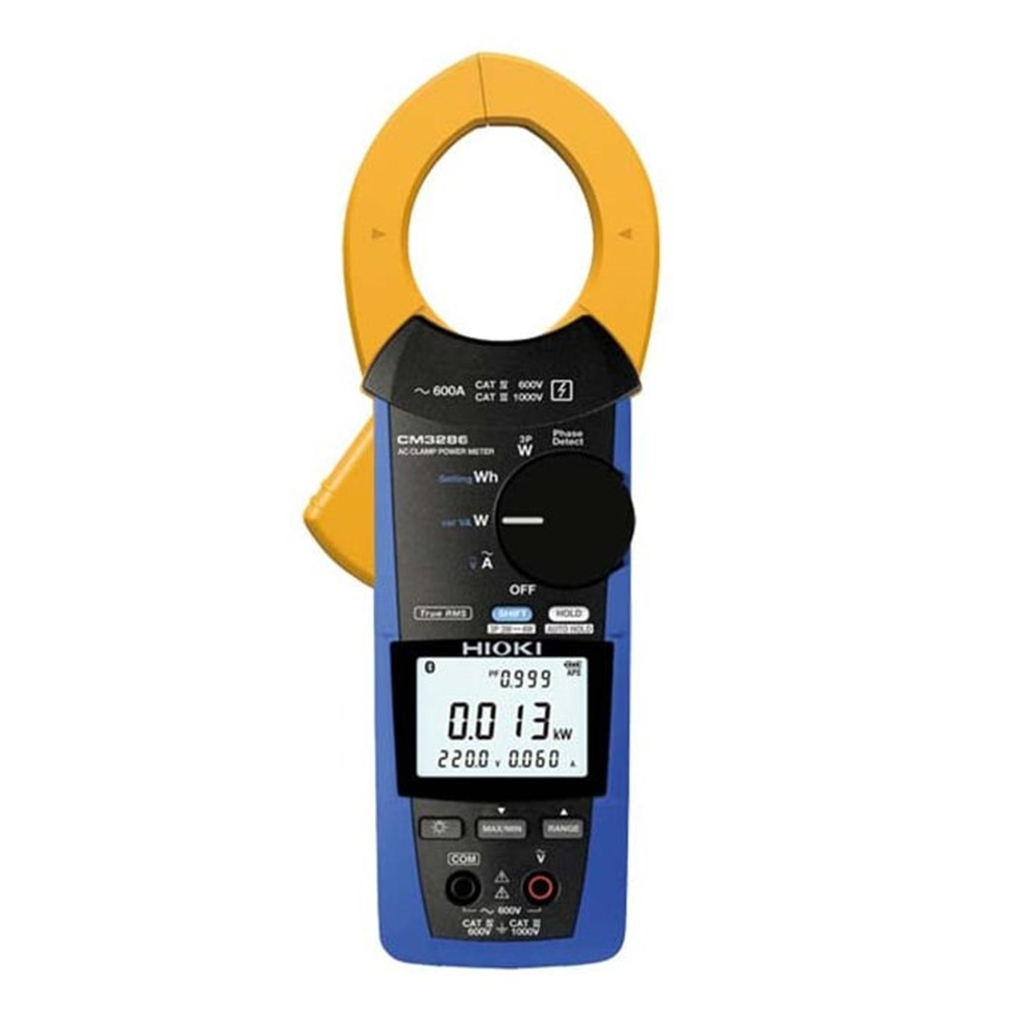

AC Clamp Power Hioki CM3286

Ada Stock

Spesifikasi Produk AC Clamp Power Hioki CM3286 :

SKU : CM3286

Size : 82 × 241 × 37 mm

AC Clamp Power Hioki CM3286

Dapatkan produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 9.364.000,00

Deskripsi Produk AC Clamp Power Hioki CM3286 :

AC Clamp Power Hioki CM3286

Spesifikasi :

  • Clamp On Power Tester
  • Damage-resistant jaws
  • Rotary switch that can be turned with a single hand
  • Dustproof and waterproof: IP54
  • White backlight Wide viewing angle display
  • Measure power ranging from 5 W at a low current of 60 mA to 360 kW
  • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
Measurement line Single-phase, Three-phase (balanced with no distortion)
Measurement items Voltage, Current, Voltage/ current peak, Active/ reactive/ apparent power, Power factor, Phase angle *1, Frequency, Simple Active Energy Consumption (Single-phase) [CM3286-01 only*2] Voltage/ current harmonic levels
AC voltage [Measurement range] 80.0 V to 600.0 V, Single range,
Basic accuracy 45 - 66 Hz: ±0.7% rdg. ±3 dgt.
(Frequency characteristics: 45 to 1 kHz, True RMS)
AC current [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy:
±1.3% rdg. ±3dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
Power [Single phase] 0.005 kW to 360.0 kW
Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 3-wire] 0.020 kW to 623.5 kW
Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 4-wire] 0.040 kW to 1080 kW
Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)
Harmonic levels (CM3286-01only *2) Voltage/ current harmonic levels up to 30th, Content factor,
Total harmonic distortion ratio
Other functions [Phase angle *1] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, Max / Min / Avg value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.
Dustproof and waterproof IP54 (EN60529) Grip, excluding lever
Risk of electric shock from measured conductors increases when wet
Interface Bluetooth® 4.0LE, display measured values on an iOS or Android device
Power supply LR03 Alkaline battery ×2
Core jaw dia. φ 46 mm (1.81 in)
Dimensions and mass 82 mm (3.23in) W × 241 mm (9.49in) H × 37 mm (1.46in) D, 450 g (15.9 oz)
Accessories Connection cord L9257 ×1, LR03 Alkaline battery ×2, Carrying case C0203 ×1, Instruction manual ×1
[CM3286-01 only]Notice Regarding Equipment That Emits Radio Waves ×1

AC Clamp Power Hioki CM3286
