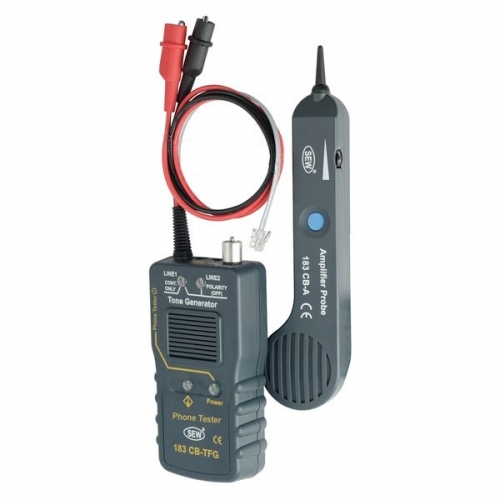

2 in 1 Cable Tracer & Phone Tester SEW 183CB

Tidak Ada Stock

Spesifikasi Produk 2 in 1 Cable Tracer & Phone Tester SEW 183CB :

SKU : 183CB

Size : 230 x 56 x 27 mm

Produk 2 in 1 Cable Tracer & Phone Tester SEW 183CB

Dapatkan produk SEW dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 1.485.000,00

Deskripsi Produk 2 in 1 Cable Tracer & Phone Tester SEW 183CB :

2 in 1 Cable Tracer & Phone Tester SEW 183CB

Fitur 2 in 1 Cable Tracer & Phone Tester SEW 183CB:

Cable Tracer

● Trace wires or cables.
● Volume control.
● Tip & Ring identification.
● 2 bi-colored LEDs ( Line 1 & Line 2).
● Tone speed selection : Fast & Slow.
● A phone jack is designed for headset or handset.
   (Amplifier probe)

Digital Multimeter

● 4000 counts.
● ACV, DCV.
● Ohm, Diode, & Continuity testing.
● Auto-range.
● Data hold.
● Low battery indication.
● Select function.
● Auto-off.

Spesifikasi Detail 2 in 1 Cable Tracer & Phone Tester SEW 183CB:

AC Voltage

Range

Resolution

Accuracy

400mV

0.1mV

±(1.0%rdg+5dgt)

4V

1mV

40V

10mV

400V

100mV

750V

1V

DC Voltage

Range

Resolution

Accuracy

400mV

0.1mV

±(0.5%rdg+3dgt)

4V

1mV

40V

10mV

400V

100mV

1000V

1V

Resistance
Range Resolution Accuracy

400Ω

0.1Ω

±(1.2%rdg+3dgt)

4kΩ

1Ω

40kΩ

10Ω

400kΩ

100Ω

4MΩ

1kΩ

40MΩ

10kΩ

±(2.0%rdg+4dgt)

Continuity Test

Range

Audible threshold

400Ω

Less than 25Ω

SPECIFICATIONS
Frequency detection Amplifier Probe: 1Hz~12kHz
Tone Generator: 1kHz ±15%
Over protection Tone Generator: 80V DC
Alternating tone Fast and Slow
Connection Tone Generator : RJ11 connector
                             alligator clip x 2
Sensitivity control   ˇ
Receiver distance <50cm
Operating
temperature
& humidity
0°C ~ 40°C, 80% Max.
Temperature
& humidity
Operating:
0°C~40°C ≤80% R.H.
Storage:
-10°C~50°C ≤80% R.H.
Dimensions Amplifier Probe:
230(L) x 56(W) x 27(D)mm
Tone Generator/DMM:
183(L) x 82 (W) x 44(D)mm
Weight
(battery included)
Amplifier Probe: 125g
Tone Generator/DMM: 305g
Power source Amplifier Probe: 9V(6F22) × 1
Tone Generator: 9V(6F22) × 1
DMM: 1.5V(AAA) x 2
Safety standard EN 61010-1 CAT Ⅲ 600V
EN 61326-1 EN 55011
EN 61000-4-2
EN 61000-4-3

2 in 1 Cable Tracer & Phone Tester SEW 183CB
